Form Configuration

This guide helps you create and customize forms.

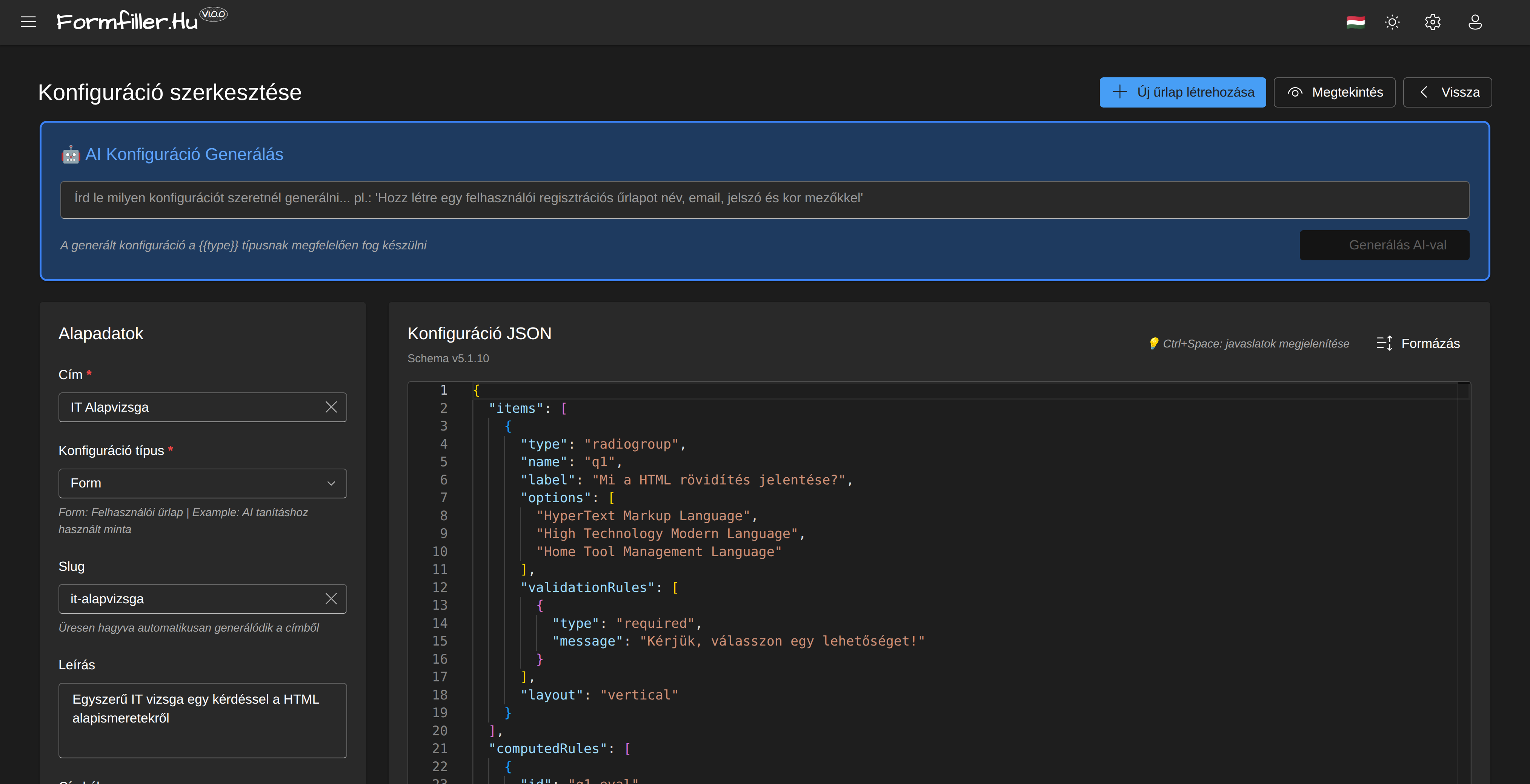

Configuration editor The configuration editor interface

Overview

Forms are created based on JSON configuration. The configuration determines: - What fields appear - What types they are - What validations apply - How they behave (conditional display, calculations)

Configuration Editor

Opening

  1. Open the Administration menu
  2. Select "Configurations"
  3. Click an existing configuration or "New" button

Interface Elements

  • Tree structure: Field hierarchy on the left
  • Properties: Current element settings on the right
  • Preview: Live preview of the form
  • JSON Editor: For advanced users

AI Configuration Generation

With AI, you can automatically generate form configurations from natural language descriptions.

Usage

  1. Type the desired form description in the prompt field
  2. Click "Generate with AI" button

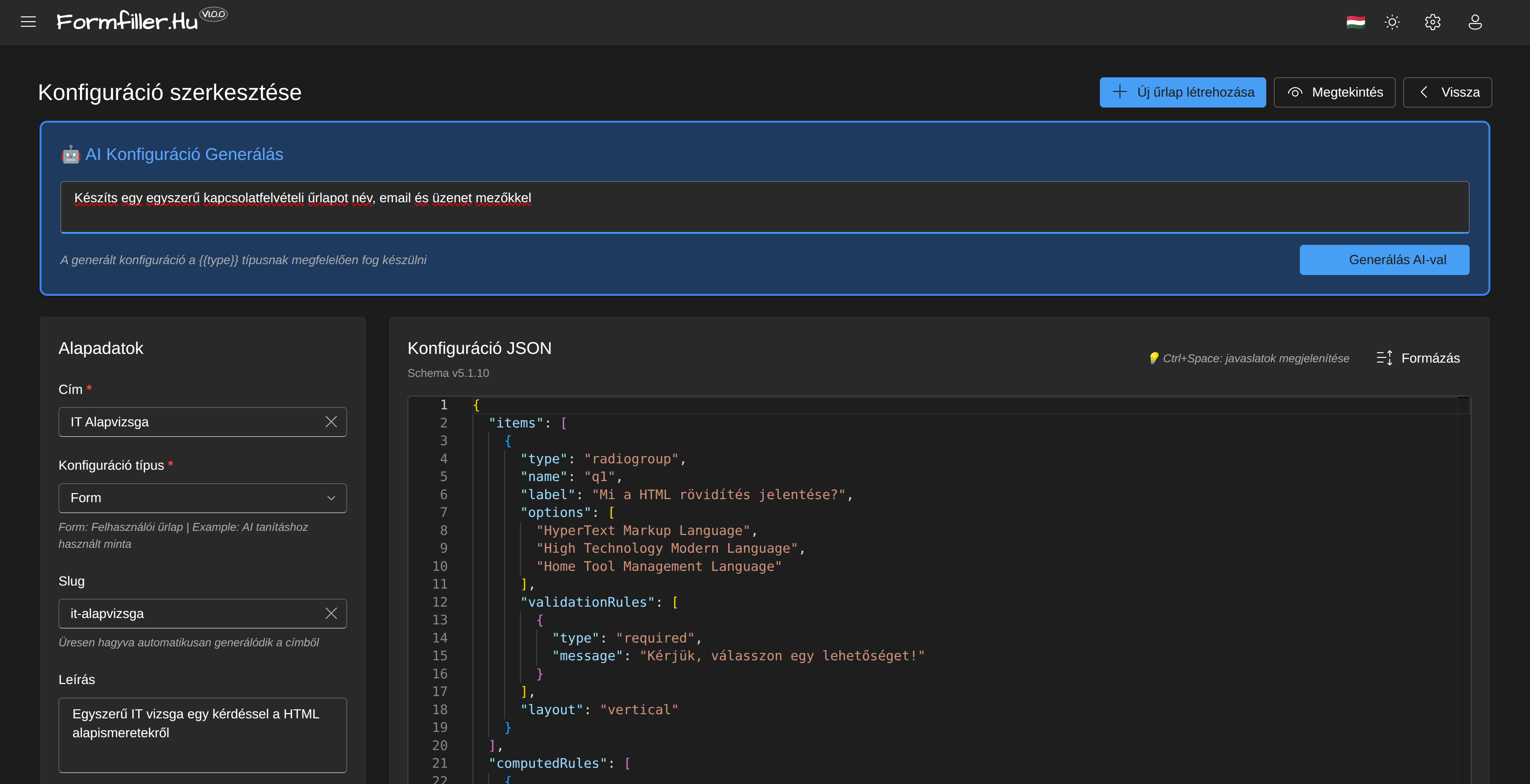

AI prompt input AI prompt input for generation

Generation Process

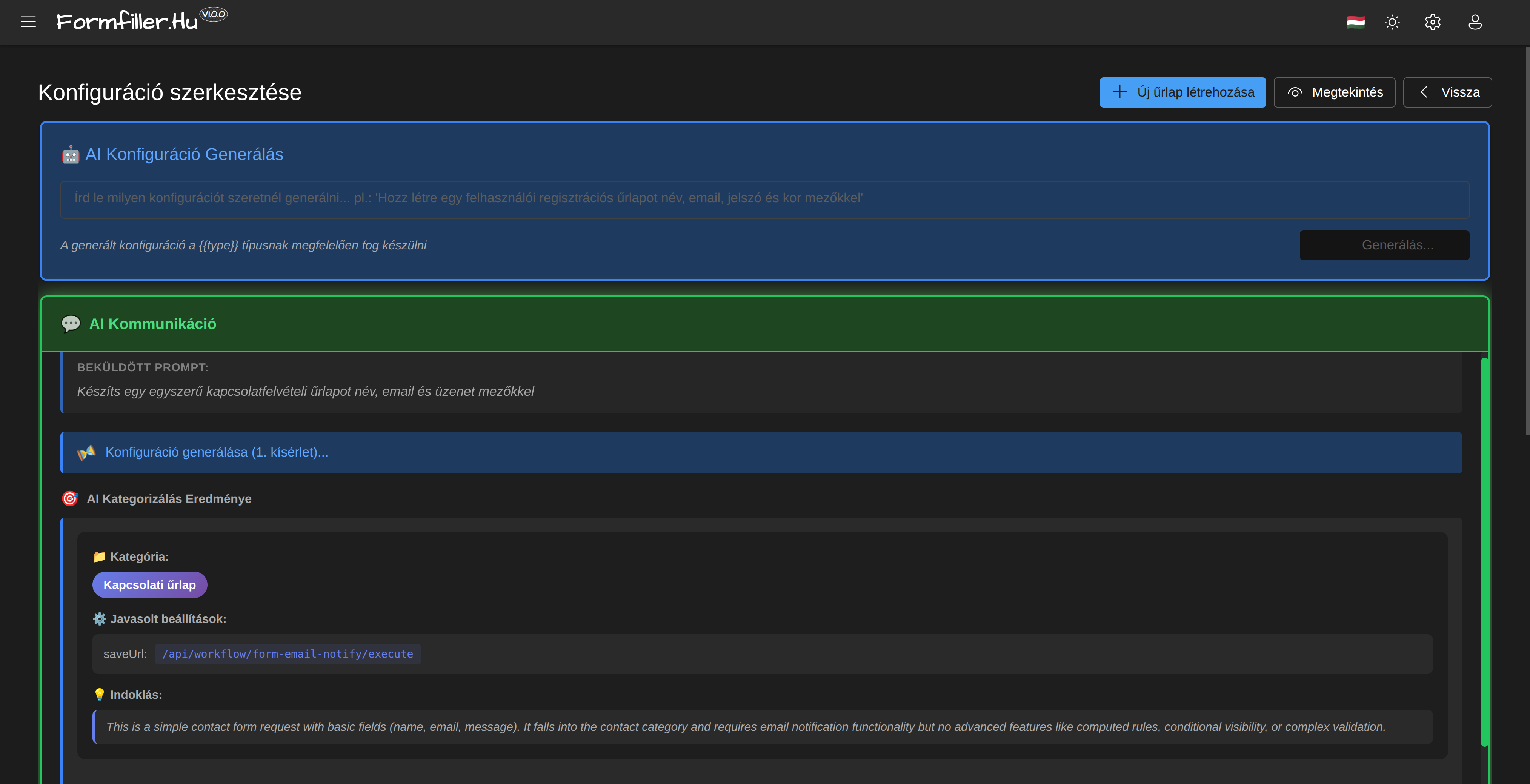

AI generating AI categorizing and analyzing the request

The system: - Automatically categorizes the form type - Suggests appropriate settings (e.g., saveUrl) - Generates field names and validations

Result

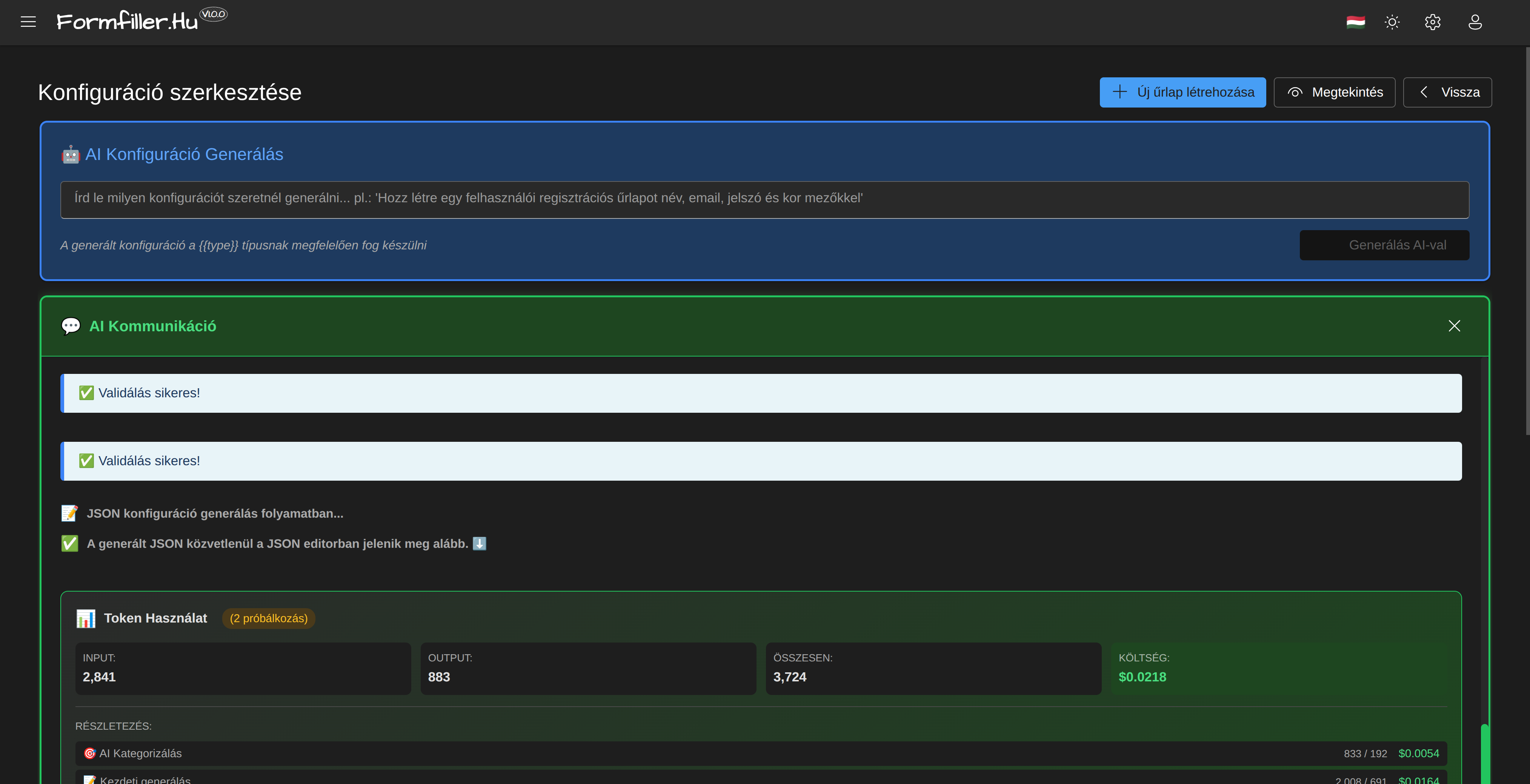

AI generation complete Generation result with token usage

The generated configuration: - Appears directly in the JSON editor - Contains validation rules - Shows token usage and cost

Field Types

Text Fields

Type Description Usage
text Single line text Name, title
textarea Multi-line text Comments, description
html Rich text editor Formatted content

Numbers

Type Description Usage
number Number Quantity, price

Settings: - Minimum/maximum value - Decimal places - Show spinner buttons

Dates

Type Description Usage
date Date only Birth date
datetime Date and time Appointment booking

Settings: - Minimum/maximum date - Display format

Selections

Type Description Usage
boolean Yes/No Acceptance
lookup Dropdown list Category selection
tagbox Multiple selection Tags

Files

Type Description Usage
file File upload Documents
image Image upload Profile picture
signature Signature Approval

Structure Elements

Groups

Visual grouping of fields:

  1. Add "Group" element
  2. Set the title
  3. Drag fields into it

Settings: - Number of columns (1-4) - Collapsible

Tabs

Splitting into multiple tabs:

  1. Add "Tabs" element
  2. Create the tabs
  3. Distribute fields among tabs

Nested Grid

Tabular data entry within the form:

  1. Add "Grid" field
  2. Define columns
  3. Set add/delete permissions

Validation Setup

Required Field

  1. Select the field
  2. In Properties panel check "Required" option
  3. Enter error message (optional)

String Length

  1. Select "String Length" validation
  2. Set minimum and/or maximum value
  3. Enter error message

Number Range

  1. Select "Range" validation
  2. Set minimum and/or maximum value
  3. Enter error message

Custom Pattern (Regex)

  1. Select "Pattern" validation
  2. Enter regex pattern
  3. Enter error message

Common patterns: - Phone number: ^\+?[0-9]{9,15}$ - Postal code: ^[0-9]{5}$ - URL: ^https?://.*

Conditional Logic

Conditional Display

Show field based on another field's value:

  1. Select the field
  2. Open "Conditions" tab
  3. Select "Visible if" option
  4. Enter condition:
  5. Referenced field
  6. Expected values

Example: "Spouse name" field only appears when "Marital status" value is "Married".

Conditional Disable

Similarly, for disabling field:

  1. Select "Disabled if" option
  2. Enter condition

Conditional Required

Make field conditionally required:

  1. Select "Required if" option
  2. Enter condition

Lookup Fields

Static List

Predefined values:

  1. Select lookup type
  2. Select "Static list" source
  3. Enter values

Dynamic List

Values loaded from database:

  1. Select lookup type
  2. Select "API" source
  3. Enter API endpoint

Dependent Lookup

List dependent on another field's value:

  1. Configure main lookup field
  2. On dependent field select "Depends on" option
  3. Select parent field
  4. Enter filter expression

Calculated Fields

Simple Calculation

Value calculated from field values:

  1. Create calculated field
  2. Set to "Read only"
  3. Add event handler:
  4. Event: When source field changes
  5. Action: Calculate
  6. Formula: e.g., quantity * unitPrice

Summation

Summing nested grid rows:

  1. Create total field
  2. Add calculation event
  3. Use sum() function

Preview and Testing

Live Preview

See live preview on right side of editor.

Testing

  1. Click "Test" button
  2. Fill with test data
  3. Verify behavior

Save and Publish

Save Draft

  • Ctrl+S or "Save" button
  • Draft is not visible to users

Publish

  1. Review configuration
  2. Click "Publish" button
  3. Form becomes available

Tips

User-Friendly Forms

  • Group related fields
  • Use clear labels
  • Enter placeholder text
  • Describe expected format

Performance

  • Avoid too many fields on one form
  • Use tabs for long forms
  • Optimize lookup data sources

Maintainability

  • Use descriptive field names
  • Document custom logic
  • Test changes
